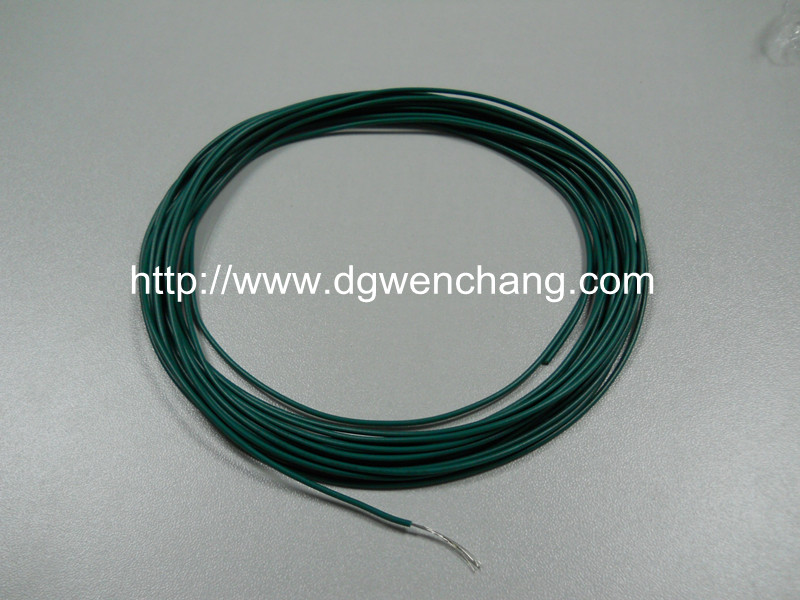

UL1429 Hook-up wire
Prv：UL1430 Hook-up wireNext：UL1185 Hook-up wire

Product Description:

1)  Tinned,annealed,stranded or solid copper conductor.

2)  XL-PVC insulation.

3)  Rated temperature:80°C.Rated voltage:150volts.

4)  Resistant to haet,cold,abrasion,tinned flexibility,cut-through,oil,ect.

5)  Passes UL VW-1 & CSA FT1 vertical flame test.

6)  Executive Standard:UL758,UL1581,CSA22.2.

Applications:

1)  For electric Cookers,Hair dryers,incoming wires of transformer,air-conditioners,lights fixture,elecric ovens, ect.

UL Style & CSA Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL1429
（Stranded)		 30 7/0.100 0.23 0.80 2000 610 381.00
28 7/0.127 0.23 0.90 2000 610 239.00
26 7/0.160 0.23 1.00 2000 610 150.00
24 11/0.160 0.23 1.10 2000 610 94.20
22 17/0.160 0.23 1.30 2000 610 59.40
20 21/0.178 0.23 1.50 2000 610 36.70
18 34/0.178 0.23 1.80 2000 610 23.20
16 26/0.250 0.23 2.10 2000 610 14.60
UL1429    (Top-coated) 30 7/0.100 0.23 0.80 2000 610 381.00
28 7/0.127 0.23 0.90 2000 610 239.00
26 7/0.160 0.23 1.00 2000 610 150.00
24 7/0.200 0.23 1.10 2000 610 94.20
22 7/0.250 0.23 1.25 2000 610 59.40
UL1429     (Solid) 26 1/0.404 0.23 0.90 2000 610 150.00
24 1/0.511 0.23 1.00 2000 610 94.20
22 1/0.643 0.23 1.15 2000 610 59.40
20 1/0.813 0.23 1.35 2000 610 36.70
18 1/1.024 0.23 1.55 2000 610 23.20
