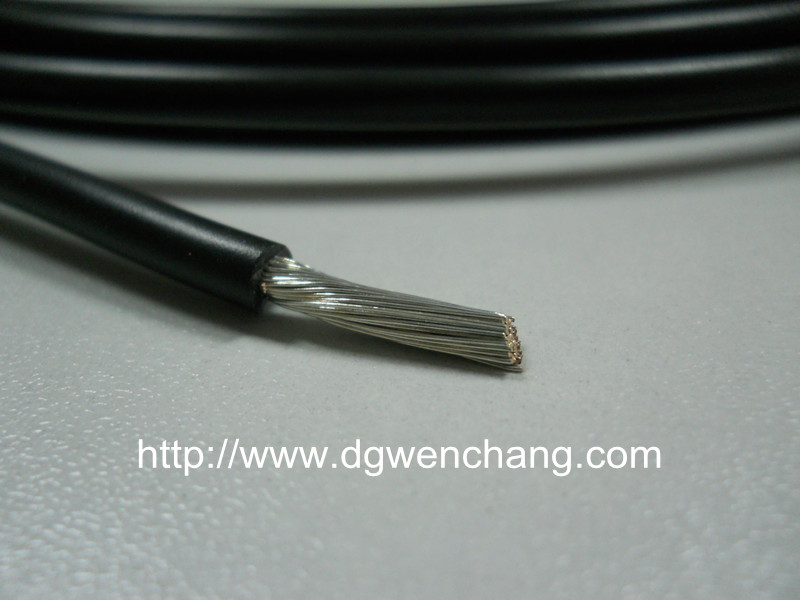

UL1533 Hook-up wire
Prv：UL1569 Hook-up wireNext：UL1505 Hook-up wire

Product Description:

1.Tinned,annealed,stranded or solid copper conductor.

2.PVC insulation.

3.Tinned copper wire spiral shield.

4.PVC jacketed single core.

5.Use of spiral shield allows for fast and simple temination.

6.Rated temperature:80°C.Rated voltage:300volts.

7.Passes UL VW-1&CSA FT1 vertical flamt test.

Applications:

For use in recording studios,sound systems andelectronic circuits and power adaptor for portable pc.

UL Style & CSA Type Conductor Insulation
Thickness		 Nom.dia Spiral shield Jacket Thickness Overall diameter Conductor
Resistance at 20℃
AWG No/mm mm mm No./mm mm mm Ω/KM
UL1533
（Stranded)		 30 7/0.100 0.23 0.80 26/0.10 0.35 1.70 381.00
28 7/0.127 0.23 0.90 29/0.10 0.35 1.80 239.00
26 7/0.160 0.23 1.00 32/0.10 0.35 2.00 150.00
24 11/0.160 0.23 1.10 35/0.10 0.35 2.20 94.20
22 17/0.160 0.23 1.30 40/0.10 0.35 2.40 59.40
20 21/0.178 0.23 1.50 46/0.10 0.35 2.60 36.70
18 34/0.178 0.23 1.80 53/0.10 0.35 2.80 23.20
16 26/0.250 0.23 2.10 63/0.10 0.35 3.00 14.60
