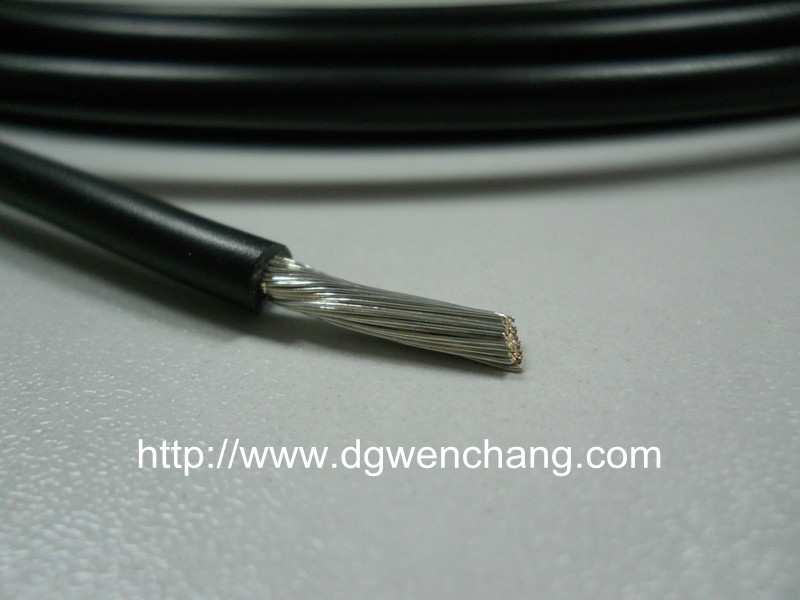

UL1571 Hook-up wire
Prv：UL1617 Hook-up wireNext：UL1569 Hook-up wire

Tinned stranded hook-up wire

Product Description:

1.Tinned, annealed,stranded or solid copper conductor.

2.Color -coded PVC insulation(jacketed optional).

3.Rated temperature:80°C .Rated voltage:30volts

4.Uniform thickness of wire to ensure easy stripping and cutting.

5.Passes UL VW-1&CSA FT1 vertical flamt test.

6.Executive Standard:UL758.UL1581.CSA22.2.

Applications:

For use in recording studios,sound systems and electronic circuits.

UL Style & CSA Type Conductor Insulation
Thickness		 Nom.Dia Standard Put-up Conductor
Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL1571
（Stranded)		 30 7/0.100 0.25 0.80 2000 610 381.00
28 7/0.127 0.25 0.90 2000 610 239.00
26 7/0.160 0.25 1.00 2000 610 150.00
24 11/0.160 0.25 1.10 2000 610 94.20
22 17/0.160 0.25 1.30 2000 610 59.40
20 21/0.178 0.25 1.50 2000 610 36.70
UL1571   (Top-coated) 30 7/0.100 0.25 0.80 2000 610 381.00
28 7/0.127 0.25 0.90 2000 610 239.00
26 7/0.160 0.25 1.00 2000 610 150.00
24 7/0.200 0.25 1.10 2000 610 94.20
UL1571 (Solid) 30 1/0.254 0.25 0.75 2000 610 381.00
28 1/0.320 0.25 0.85 2000 610 239.00
26 1/0.404 0.25 0.95 2000 610 150.00
24 1/0.511 0.25 1.05 2000 610 94.20
