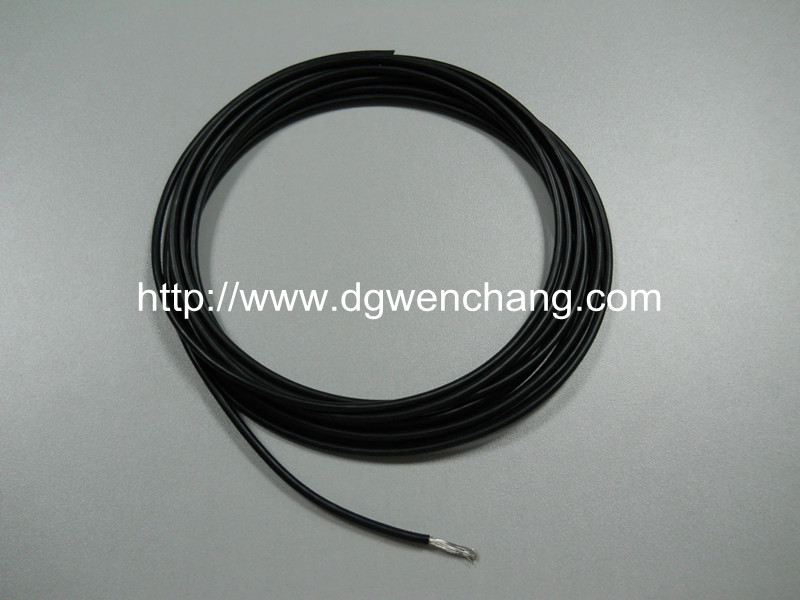

Product Description:
1) Tinned, annealed, stranded or solid copper conductor.
2) XL-PE insulation.
3) Rated temperature: 125°C. Rated voltage: 600Volts.
4) Uniform thickness of wire to ensure easy stripping and cutting.
5) Passes UL VW-1 & CSA FT1/FT2 vertical flame test or horizontal flame test.
6) Executed standard: UL758, UL1581, CSA22.2.
Applications:
1) Widely applied in aviation; metallurgy and petroleum industry as well as applied in other products such as: electronic instrument & device, electrical appliance leads for transformer & electrical motor.
UL Style & CSA Type
Conductor
Insulation
ThicknessOverall
DiameterStandard Put-up
Conductor
Resistance at 20℃
AWG
No/mm
mm
mm
Ft/coil
M/Coil
Ω/KM
UL3290
（Stranded)26
7/0.160
1.55
3.80
1000
305
150.00
24
11/0.160
1.55
4.00
1000
305
94.20
22
17//0.160
1.55
4.20
1000
305
59.40
20
21/0.178
1.55
4.50
1000
305
36.70
18
34/0.178
1.55
4.70
1000
305
23.20
16
26/0.250
1.55
4.90
1000
305
14.60
14
41/0.250
1.55
5.30
1000
305
8.96
12
65/0.250
1.55
5.80
1000
305
5.64
10
105/0.250
1.55
6.50
1000
305
3.55
UL3290 (Top-coated)
26
7/0.160
1.55
3.80
1000
305
150.00
24
7/0.200
1.55
4.00
1000
305
94.20
22
7/0.250
1.55
3.80
1000
305
59.40
UL3290 (Solid)
26
1/0.404
1.55
3.70
1000
305
150.00
24
1/0.511
1.55
3.90
1000
305
94.20
22
1/0.643
1.55
4.10
1000
305
59.40
20
1/0.813
1.55
4.30
1000
305
36.70
18
1/1.024
1.55
4.50
1000
305
23.20
