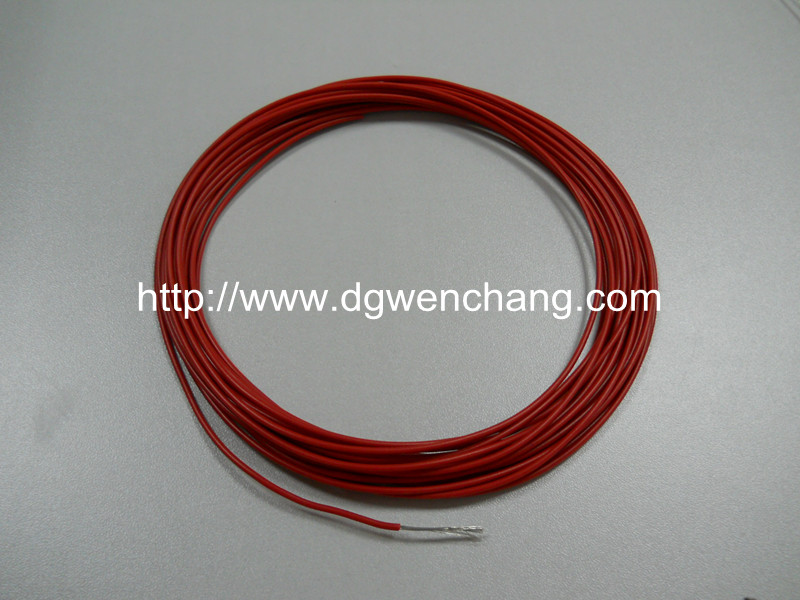

UL3321 XL-PE Hook-up Wire
Product Description:
1) Tinned,annealed,stranded or solid copper conductor.
2) XL-PE insulation.
3) Rated temperature: 150°C. Rated voltage: 600Volts.
4) Uniform thickness of wire to ensure easy stripping and cutting.
5) Passes UL VW-1 & CSA FT1/FT2 vertical flame test or horizontal flame test.
6) Executed standard: UL758, UL1581, CSA22.2.
Applications:
1) Widely applied in aviation; metallurgy and petroleum industry as well as applied in other products such as: electronic instrument & device, electrical appliance leads for transformer & electrical motor.
| UL Style & CSA Type | Conductor | Insulation Thickness |
Overall Diameter |
Standard Put-up | Conductor Resistance at 20℃ |
||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL3321 （Stranded) |
26 | 7/0.160 | 0.76 | 2.10 | 2000 | 610 | 150.00 |
| 24 | 11/0.160 | 0.76 | 2.20 | 2000 | 610 | 94.20 | |
| 22 | 17//0.160 | 0.76 | 2.40 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.76 | 2.50 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.76 | 2.80 | 2000 | 610 | 23.20 | |
| 16 | 26/0.250 | 0.76 | 3.10 | 1000 | 305 | 14.60 | |
| 14 | 41/0.250 | 0.76 | 3.50 | 1000 | 305 | 8.96 | |
| 12 | 65/0.250 | 0.76 | 4.00 | 1000 | 305 | 5.64 | |
| 10 | 105/0.250 | 0.76 | 4.60 | 1000 | 305 | 3.55 | |
| UL3321 (Top-coated) | 26 | 7/0.160 | 0.76 | 2.10 | 2000 | 610 | 150.00 |
| 24 | 7/0.200 | 0.76 | 2.20 | 2000 | 610 | 94.20 | |
| 22 | 7/0.250 | 0.76 | 2.40 | 2000 | 610 | 59.40 | |
| UL3321 (Solid) | 26 | 1/0.404 | 0.76 | 1.95 | 2000 | 610 | 150.00 |
| 24 | 1/0.511 | 0.76 | 2.15 | 2000 | 610 | 94.20 | |
| 22 | 1/0.643 | 0.76 | 2.30 | 2000 | 610 | 59.40 | |
| 20 | 1/0.813 | 0.76 | 2.50 | 2000 | 610 | 36.70 | |
| 18 | 1/1.024 | 0.76 | 2.70 | 2000 | 610 | 23.20 | |
