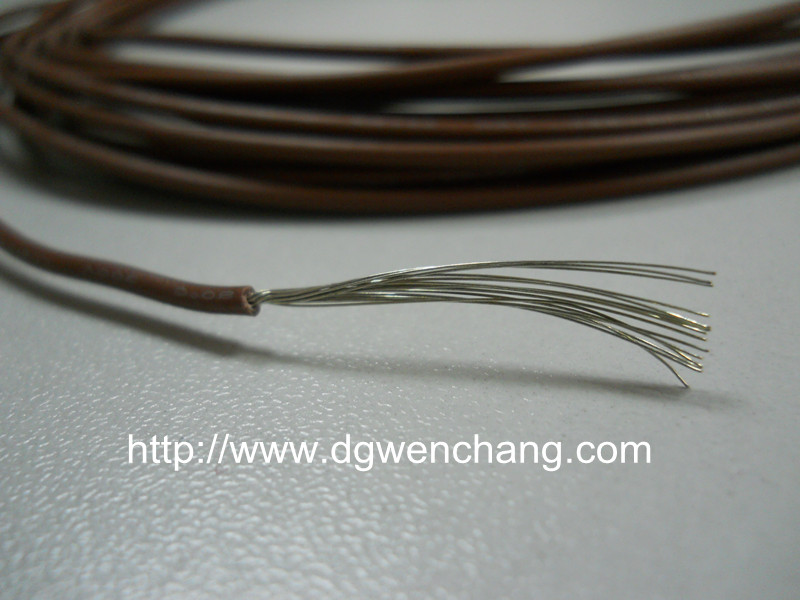

UL3666 XL-PE Electric Wire
Prv：UL21016 XL-PE Flat Ribbon WireNext：UL3649 XL-PE Electric Wire

Product Description:

1)  Tinned,annealed,stranded or solid copper conductor.

2)  XL-PE insulation.

3)  Rated temperature: 105°C. Rated voltage: 600Volts.

4)  Uniform thickness of wire to ensure easy stripping and cutting.

5)  Passes UL VW-1 & CSA FT1/FT2 vertical flame test or horizontal flame test.

6)  Executed standard: UL758, UL1581, CSA22.2.

Applications:

1)   They are the same with the inner fixed wires for home appliance, headlamp, machanical etc.

UL Style & CSA Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL3666
（Stranded)		 32 7/0.080 0.41 1.00 2000 610 586.00
30 7/0.100 0.41 1.10 2000 610 381.00
28 7/0.127 0.41 1.20 2000 610 239.00
26 7/0.160 0.41 1.30 2000 610 150.00
24 11/0.160 0.41 1.40 2000 610 94.20
22 17//0.160 0.41 1.60 2000 610 59.40
20 21/0.178 0.41 1.80 2000 610 36.70
18 34/0.178 0.41 2.10 2000 610 23.20
16 26/0.250 0.41 2.40 2000 610 14.60
14 41/0.250 0.41 2.80 1000 305 8.96
12 65/0.250 0.41 3.40 1000 305 5.64
10 105/0.250 0.41 4.00 1000 305 3.55
UL3666  (Top-coated) 28 7/0.127 0.41 1.20 2000 610 239.00
26 7/0.160 0.41 1.30 2000 610 150.00
24 7/0.200 0.41 1.40 2000 610 94.20
22 7/0.250 0.41 1.60 2000 610 59.40
UL3666   (Solid) 28 1/0.320 0.41 1.10 2000 610 239.00
26 1/0.404 0.41 1.20 2000 610 150.00
24 1/0.511 0.41 1.30 2000 610 94.20
22 1/0.643 0.41 1.40 2000 610 59.40
20 1/0.813 0.41 1.60 2000 610 36.70
18 1/1.024 0.41 1.80 2000 610 23.20
