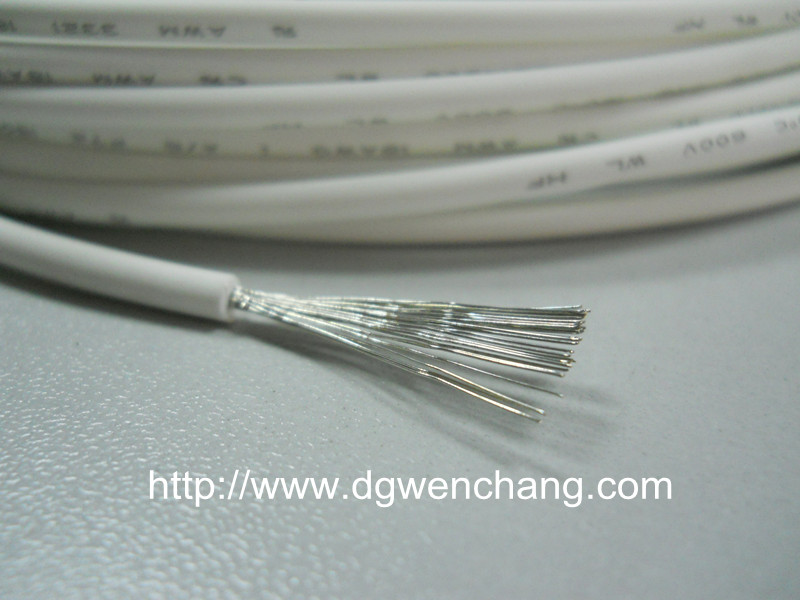

UL3443 Electric cable
electric wire
Product Description:
1) Tinned, annealed, stranded or solid copper conductor.
2) XL-PVC insulation.
3) Rated temperature: 105°C. Rated voltage: 300volts.
4) Uniform thickness of wire to ensure easy stripping and cutting.
5) Passes UL VW-1 & CSA FT1 vertical flame test.
6) Top coated conductor is avaiable.
Applications:
- For general purpose internal wiring of electronic and electricalequipment.
| UL Style& CSA Type | Conductor | Insulation Thickness |
Overall Diameter |
Standard Put-up | Conductor Resistance at 20℃ |
||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL3443 CSA （Stranded) |
30 | 7/0.102 | 0.25 | 0.80 | 2000 | 610 | 381.00 |
| 28 | 7/0.127 | 0.25 | 0.90 | 2000 | 610 | 239.00 | |
| 26 | 7/0.16 | 0.25 | 1.00 | 2000 | 610 | 150.00 | |
| 24 | 11/0.16 | 0.25 | 1.10 | 2000 | 610 | 94.20 | |
| 22 | 17/0.16 | 0.25 | 1.30 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.25 | 1.50 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.25 | 1.80 | 2000 | 610 | 23.20 | |
| 16 | 26/0.25 | 0.25 | 2.10 | 2000 | 610 | 14.60 | |
