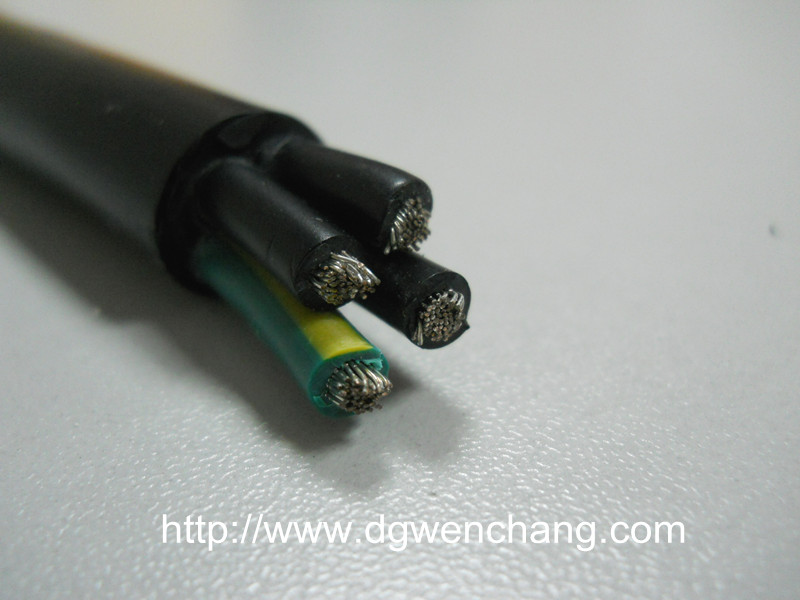

UL20911 PUR Electrical Cable
Prv：UL20936 PUR CableNext：UL20274 PUR Cable

PUR electrical cable

Product Description:

1)  Tinned, annealed,stranded or solid copper conductor.

2)  PUR Insulation

3)  Rated temperature: 80°C. Rated voltage: 300volts

4)  Passes UL VW-1 & CSA FT1  vertical and horizontal flame test

5) Executive Standard:UL758,UL1581,CSA22.2.

Applications:External interconnection of electronic equipment.



UL Style& CUL Type Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Dimeter		 Conductor
Resistance at 20℃
AWG No/mm mm mm % mm mm Ω/KM
UL20911
CUL
（Stranded)
 2C 30 7/0.100 0.23 0.80 >=65 1.15 4.30 381.00
28 7/0.127 0.23 0.90 >=65 1.15 4.60 239.00
26 7/0.16 0.23 1.00 >=65 1.15 4.70 150.00
24 11/0.16 0.23 1.10 >=65 1.15 4.90 94.20
22 17/0.16 0.23 1.30 >=65 1.15 5.40 59.40
20 21/0.178 0.23 1.50 >=65 1.15 5.70 36.70
18 34/0.178 0.23 1.80 >=65 1.15 6.30 23.20
16 26/0.25 0.23 2.00 >=65 1.15 8.50 14.60
UL20911
CUL
（Stranded)
 3C 30 7/0.100 0.23 0.80 >=65 1.15 6.30 381.00
28 7/0.127 0.23 0.90 >=65 1.15 6.40 239.00
26 7/0.16 0.23 1.00 >=65 1.15 6.60 150.00
24 11/0.16 0.23 1.10 >=65 1.15 6.80 94.20
22 17/0.16 0.23 1.30 >=65 1.15 7.20 59.40
20 21/0.178 0.23 1.50 >=65 1.15 7.70 36.70
18 34/0.178 0.23 1.80 >=65 1.15 8.30 23.20
UL20911
CUL
（Stranded)		 4C 30 7/0.100 0.23 0.80 >=65 1.15 6.40 381.00
28 7/0.127 0.23 0.90 >=65 1.15 6.60 239.00
26 7/0.16 0.23 1.00 >=65 1.15 6.90 150.00
24 11/0.16 0.23 1.10 >=65 1.15 7.20 94.20
22 17/0.16 0.23 1.30 >=65 1.15 7.60 59.40
20 21/0.178 0.23 1.50 >=65 1.15 8.10 36.70
UL20911
CUL
（Stranded)		 5C 30 7/0.100 0.23 0.80 >=65 1.15 6.70 381.00
28 7/0.127 0.23 0.90 >=65 1.15 7.00 239.00
26 7/0.16 0.23 1.00 >=65 1.15 7.10 150.00
24 11/0.16 0.23 1.10 >=65 1.15 7.50 94.20
22 17/0.16 0.23 1.30 >=65 1.15 8.10 59.40
UL20911
CUL
（Stranded)		 6C 30 7/0.100 0.23 0.80 >=65 1.15 7.10 381.00
28 7/0.127 0.23 0.90 >=65 1.15 7.40 239.00
26 7/0.16 0.23 1.00 >=65 1.15 7.70 150.00
24 11/0.16 0.23 1.10 >=65 1.15 8.00 94.20
