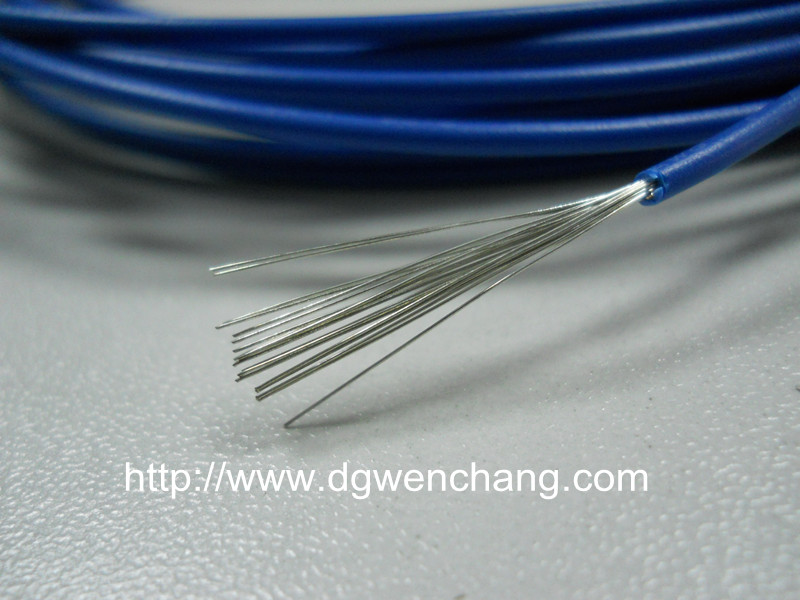

Product Description:
1.Tinned,annealed,stranded or solid copper conductor.
2.Tinned copper wire spiral shield.
3.TPE jacketed single core
4.Rated temperature:105°C.Rated voltage:300volts
5.Passes UL VW-1&CUL FT1 vertical flame test
Applications:
1. Heating Cable where the acceptability of the combination is to be determined by Underwriters Laboratories Inc.
UL Style& CUL Type
Conductor
Insulation
ThicknessNo.of core
Shielded Coverage
Jacket Thickness
Overall
DiameterConductor
Resistance at 20℃
AWG
No/mm
mm
%
mm
mm
Ω/KM
UL1845
CUL
（Stranded)30
7/0.10
0.76
1
>=65
0.76
3.80
381.00
28
7/0.127
0.76
1
>=65
0.76
3.90
239.00
26
7/0.16
0.76
1
>=65
0.76
4.10
150.00
24
11/0.16
0.76
1
>=65
0.76
4.20
94.20
22
17/0.16
0.76
1
>=65
0.76
4.40
59.40
20
21/0.178
0.76
1
>=65
0.76
4.50
36.70
18
34/0.178
0.76
1
>=65
0.76
4.80
23.20
16
26/0.25
0.76
1
>=65
0.76
5.10
14.60
