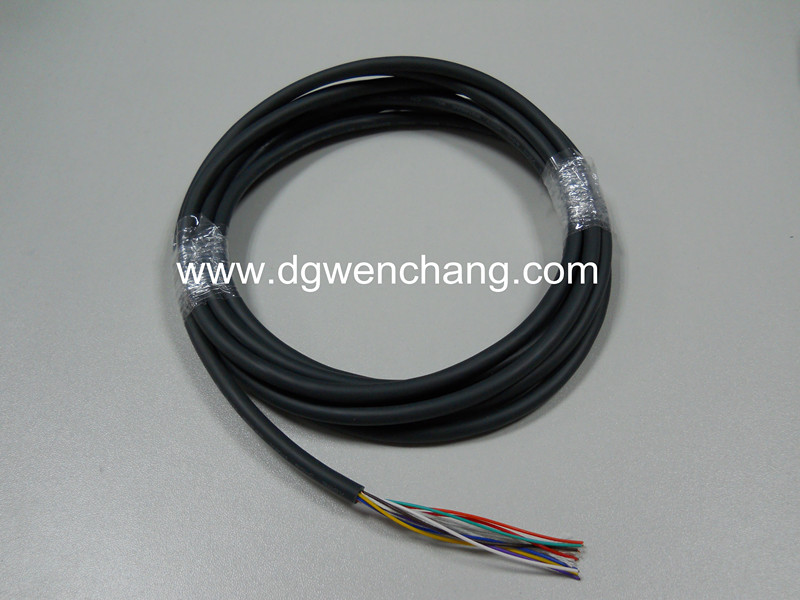

UL20806 Electronic wire
Prv：UL20820 internal cable for connectionNext：UL 20745 interconnection cable

Electronic wire

Product Description:

1.Tinned,annealed,stranded or solid copper conductor.

2.TPE  insulation.TPE jacketed.

3.Rated temperature: 105°C.Rated voltage: 300 volts.

4.Tinned or bare copper wire spiral or braid shield

5.Passes UL VW-1&CUL FT1 vertical flame test

Applications:

1.      Internal wiring of electronic equipment and appliances.



UL Style& CUL Type Cores Conductor Insulation
Thickness		 Nom.Dia Shield Coverage Jacket Thickness Overall
Dimeter		 Conductor
Resistance at 20℃
AWG No/mm mm mm % mm mm Ω/KM
UL20806
CUL
（Stranded)
 		 2C 30 7/0.100 0.38 1.10 >=65 0.76 4.40 381.00
28 7/0.127 0.38 1.20 >=65 0.76 4.50 239.00
26 7/0.16 0.38 1.30 >=65 0.76 4.60 150.00
24 11/0.16 0.38 1.40 >=65 0.76 4.90 94.20
22 17/0.16 0.38 1.60 >=65 0.76 5.10 59.40
20 21/0.178 0.38 1.80 >=65 0.76 5.50 36.70
18 34/0.178 0.38 2.10 >=65 0.76 6.10 23.20
16 26/0.25 0.38 2.40 >=65 0.76 6.90 14.60
UL20806
CUL
（Stranded)		 3C 30 7/0.100 0.38 1.10 >=65 0.76 4.50 381.00
28 7/0.127 0.38 1.20 >=65 0.76 4.70 239.00
26 7/0.16 0.38 1.30 >=65 0.76 4.90 150.00
24 11/0.16 0.38 1.40 >=65 0.76 5.10 94.20
22 17/0.16 0.38 1.60 >=65 0.76 5.30 59.40
20 21/0.178 0.38 1.80 >=65 0.76 6.00 36.70
18 34/0.178 0.38 2.10 >=65 0.76 6.60 23.20
UL20806
CUL
（Stranded)		 4C 30 7/0.100 0.38 1.10 >=65 0.76 4.70 381.00
28 7/0.127 0.38 1.20 >=65 0.76 4.90 239.00
26 7/0.16 0.38 1.30 >=65 0.76 5.20 150.00
24 11/0.16 0.38 1.40 >=65 0.76 5.60 94.20
22 17/0.16 0.38 1.60 >=65 0.76 5.90 59.40
20 21/0.178 0.38 1.80 >=65 0.76 6.40 36.70
UL20806
CUL
（Stranded)		 5C 30 7/0.100 0.38 1.10 >=65 0.76 4.90 381.00
28 7/0.127 0.38 1.20 >=65 0.76 5.10 239.00
26 7/0.16 0.38 1.30 >=65 0.76 5.20 150.00
24 11/0.16 0.38 1.40 >=65 0.76 5.60 94.20
22 17/0.16 0.38 1.60 >=65 0.76 6.20 59.40
UL20806
CUL
（Stranded)		 6C 30 7/0.100 0.38 1.10 >=65 0.76 5.10 381.00
28 7/0.127 0.38 1.20 >=65 0.76 5.50 239.00
26 7/0.16 0.38 1.30 >=65 0.76 5.90 150.00
24 11/0.16 0.38 1.40 >=65 0.76 6.20 94.20
