Home >> Products >> Silicone Rubber Series >> UL3071 High temperature resistant flexible cableDetailed description

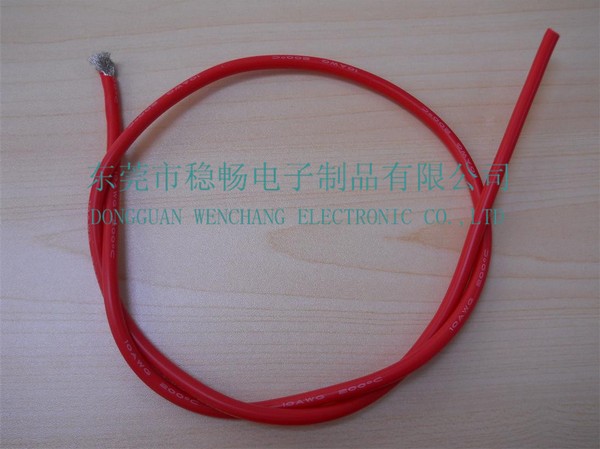

UL3071 High temperature resistant flexible cable
Product Description:
Conductor：18AWG---13AWG
Tinned,annealed,stranded or solid copper conductor.
Silicone Rubber insulation,Braid:Fiberglass+Silicone
Rated temperature:200℃.Rated voltage:600volts
Uniform thickness of wire to ensure easy stripping and cutting.
Passes UL VW-1&CUL FT1 vertical flame test
Top coated conductor is available
Applications:
Apply to Household appliance,lumination&Lighting metallurgy&Headlamp,electric machines, tempurature sensor, Military series, Metallurgy Chemical series,Motor cars&Ships,Electrical installation
| UL Style& Cul Type | Conductor |
Insulation
Thickness
|
Overall
Diameter
|
Standard Put-up |
Conductor
Resistance at 20℃
|
||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
|
UL3071
CUL AWM I A
（Stranded)
|
18 | 7/0.39 | 0.76 | 3.05 | 1000 | 305 | 23.20 |
| 34/0.178 | 0.76 | 3.05 | 1000 | 305 | |||
| 16 | 7/0.5 | 0.76 | 3.39 | 1000 | 305 | 14.60 | |
| 26/0.25 | 0.76 | 3.39 | 1000 | 305 | |||
| 14 | 37/0.26 | 0.76 | 3.74 | 1000 | 305 | 8.96 | |
| 41/0.25 | 0.76 | 3.74 | 1000 | 305 | |||
|
UL3071
CUL AWM I A
（Stranded)
|
18 | 1/1.02 | 0.76 | 2.84 | 2000 | 610 | 21.80 |
| 16 | 1/1.29 | 0.76 | 3.11 | 1000 | 305 | 13.70 | |
| 14 | 1/1.63 | 0.76 | 3.45 | 1000 | 305 | 8.62 | |
