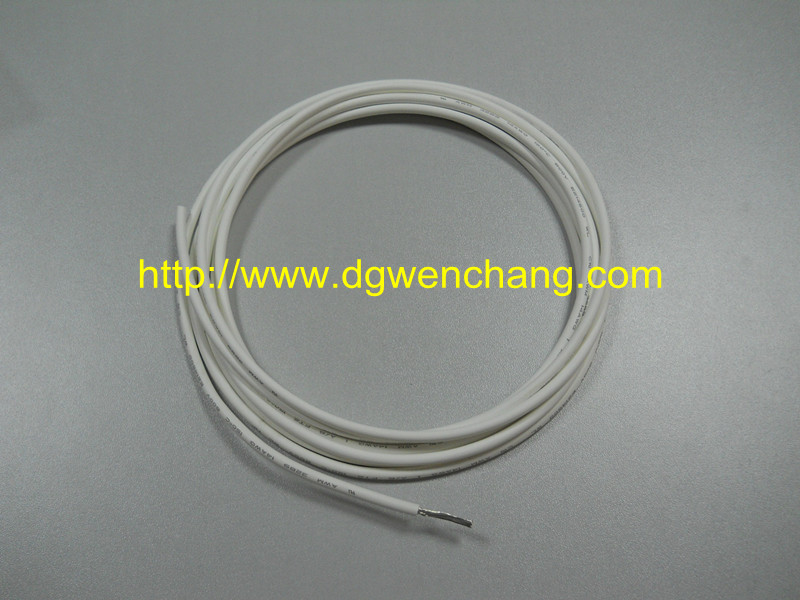

UL1674 Hook-up wire
Prv：UL1618 Hook-up wireNext：UL1673 Hook-up wire

Product Description:

1) Tinned, annealed, stranded or solid copper conductor.

2) PVC insulation.

3) Rated temperature:105°C. Rated voltage: 300volts.

4) Uniform thickness of wire to ensure easy stripping and cutting.

5) Passes UL VW-1&CSA FT1 vertical flame test.

6) Top coated conductor is avaiable.

Application

Internal wiring of computers,office equipment and other electronic and electrical equipment.

Style& CSA Type Conductor Insulation Thickness Overall Dimeter Stand Put-up Conductor Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL1674 CSA AWM I A （Stranded) 30 7/0.102 0.32 0.95 2000 610 381
28 7/0.127 0.32 1.05 2000 610 239
26 7/0.16 0.32 1.15 2000 610 150
24 11/0.16 0.32 1.3 2000 610 94.2
22 17/0.16 0.32 1.4 2000 610 59.4
20 21/0.178 0.32 1.6 2000 610 36.7
18 34/0.178 0.32 1.85 2000 610 23.2
16 26/0.25 0.32 2.2 2000 610 14.6
UL1674 CSA AWM FT1 I A/B （Top-coated) 28 7/0.127 0.32 1.05 2000 610 248
26 7/0.16 0.32 1.15 2000 610 150
24 7/0.20 0.32 1.3 2000 610 88.7
22 7/0.254 0.32 1.4 2000 610 54.7
20 7/0.32 0.32 1.6 2000 610 37.1
UL1674 CSA AWM I A （Solid) 28 1/0.32 0.32 1 2000 610 239
26 1/0.404 0.32 1.1 2000 610 143
24 1/0.511 0.32 1.2 2000 610 89.3
22 1/0.634 0.32 1.3 2000 610 56.4
20 1/0.813 0.32 1.5 2000 610 35.2
