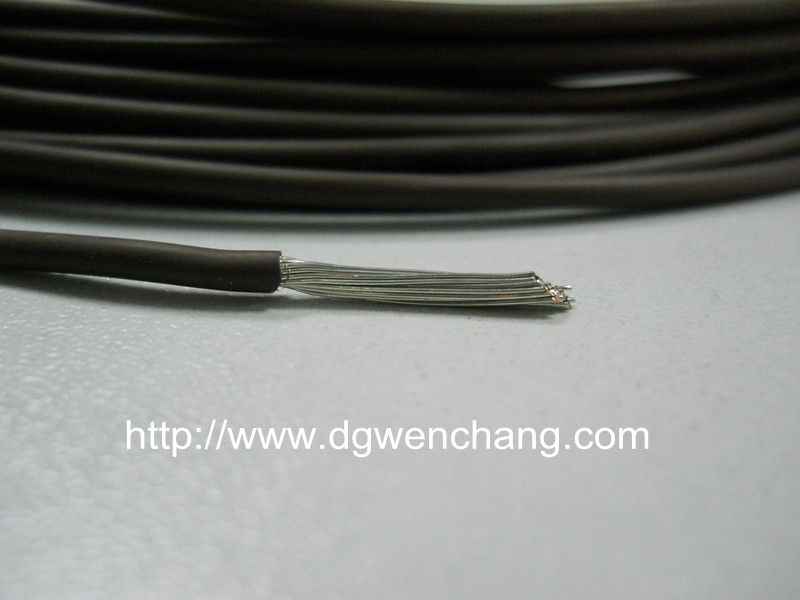

UL1618 Hook-up wire
Prv：UL1056 Hook-up wireNext：UL1674 Hook-up wire

Solid copper Electrical wire

Product Description:

1) Tinned, annealed, stranded or solid copper conductor.

2) Color-coded PVC insulation, and pvc jacket.

3) Rated temperature: 80°C. Rated voltage:300volts

4) Uniform thickness of wire to ensure easy stripping and cutting.

5) Passes UL VW-1&CSA FT1 vertical flame test.

6) Top coated conductor is avaiable.

7) Jacket thickness: from 5 to 40mils.

Applications:

Internal wiring of computers,office equipment and other electronic and electrical equipment.

UL Style& CSA Type Conductor Insulation Thickness Jacket Thickness Overall Diameter Standard Put-up Conductor Resistance at 20℃
AWG No/mm mm mm mm Ft/coil M/Coil Ω/KM
UL1618 CSA  AWM FT1 I A/B （Stranded) 28 7/0.127 0.38 0.4 2 2000 610 239
26 7/0.16 0.38 0.4 2.1 2000 610 150
24 11/0.16 0.38 0.4 2.25 1000 305 94.2
22 17/0.16 0.38 0.4 2.45 1000 305 59.4
20 21/0.178 0.38 0.4 2.6 1000 305 36.7
18 34/0.178 0.38 0.4 2.9 1000 305 23.2
16 26/0.25 0.38 0.4 3.2 2000 610 14.6
UL1618 CSA AWM FT1 I A/B （Top-coated) 26 7/0.16 0.38 0.4 2.1 2000 610 150
24 7/0.20 0.38 0.4 2.25 2000 610 88.7
22 7/0.254 0.38 0.4 2.45 1000 305 54.7
20 7/0.32 0.38 0.4 2.6 1000 305 37.1
UL1618 CSA AWM FT1 I A/B （Solid) 24 1/0.511 0.38 0.4 2 2000 610 89.3
22 1/0.634 0.38 0.4 2.15 1000 305 56.4
20 1/0.813 0.38 0.4 2.3 1000 305 35.2
18 1/1.024 0.38 0.4 2.5 1000 305 22.2
