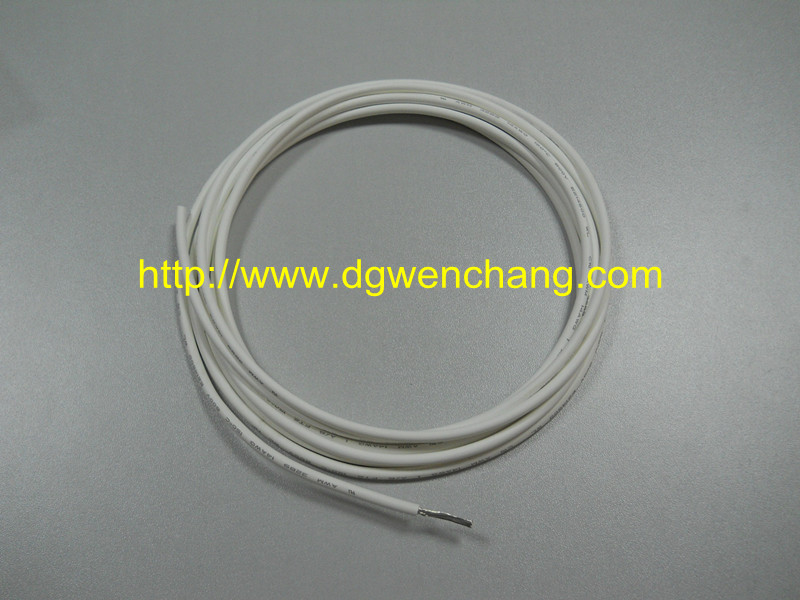

UL3785 XL-PE hook-up wire
| Product Description: | |||||||
| ■Tinned,annealed, stranded or solid copper conductor. | |||||||
| ■XL-PVC insulation. | |||||||
| ■Rated temperature: 90℃. Rated voltage: 150volts. | |||||||
| ■Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
| ■Passes UL VW-1&CSA FT1 vertical flame test. | |||||||
| Applications: | |||||||
| ■For general purpose internal wiring of electronic and electrical equipment. |
| UL Style & CSA Type | Conductor | Insulation Thickness | Overall Diameter | Standard Put-up | Conductor Resistance at 20℃ | ||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL3785 CSA （Stranded) | 26 | 7/0.16 | 0.25 | 1 | 2000 | 610 | 150 |
| 24 | 11/0.16 | 0.25 | 1.1 | 2000 | 610 | 94.2 | |
| 22 | 17/0.16 | 0.25 | 1.3 | 2000 | 610 | 59.4 | |
| 20 | 21/0.178 | 0.25 | 1.5 | 2000 | 610 | 36.7 | |
| 18 | 34/0.178 | 0.25 | 1.8 | 2000 | 610 | 23.2 | |
| 16 | 26/0.25 | 0.25 | 2.1 | 2000 | 610 | 14.6 | |
