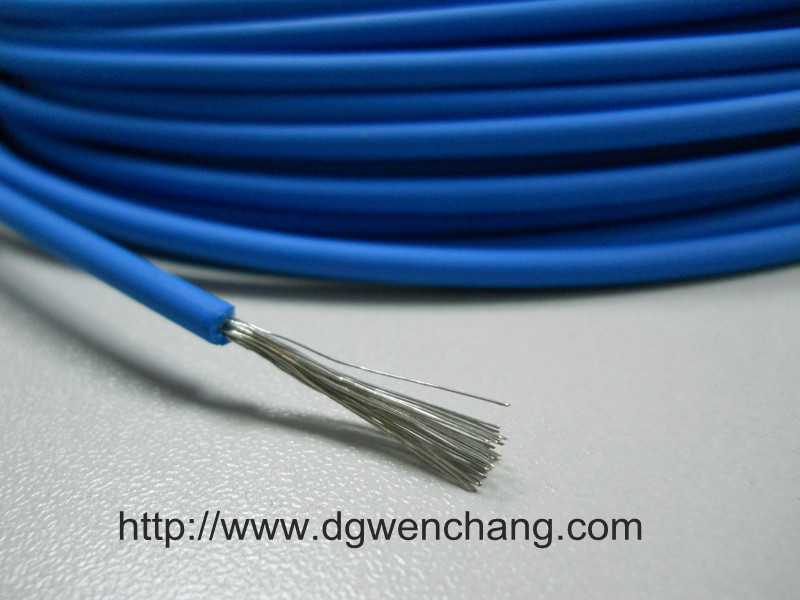

UL3611 XL-PVC Insulated Wire
Prv：UL3610 XL-PVC Insulated WireNext：UL3785 XL-PE hook-up wire
Product Description:
■Tinned,annealed,stranded or solid copper conductor.
■XL-PVC insulation.
■Rated temperature: 105℃. Rated voltage: 600/750volts.
■Uniform thickness of wire to ensure easy stripping and cutting.
■Passes UL VW-1&CSA FT1 vertical flame test.
Applications:
■For general purpose internal wiring of electronic and electrical equipment.
UL Style & CSA Type Conductor Insulation Thickness Overall Diameter Standard Put-up Conductor Resistance at 20
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL3611 CSA （Stranded) 30 7/0.102 0.51 1.4 2000 610 381
28 7/0.127 0.51 1.5 2000 610 239
26 7/0.16 0.51 1.6 2000 610 150
24 11/0.16 0.51 1.7 2000 610 94.2
22 17/0.16 0.51 1.8 2000 610 59.4
20 21/0.178 0.51 2 2000 610 36.7
18 34/0.178 0.51 2.3 2000 610 23.2
16 26/0.25 0.51 2.5 2000 610 14.6
