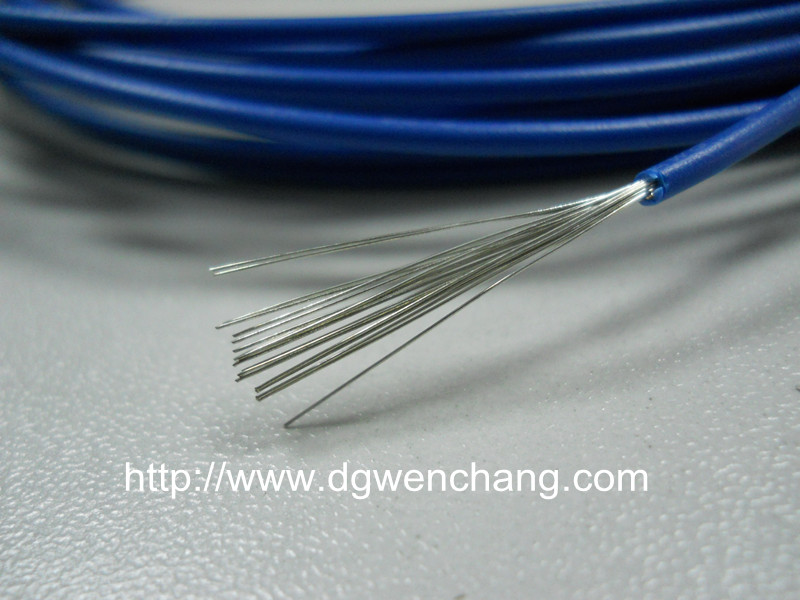

UL3466 XL-PVC Insulated Wire
Prv：UL3454 XL-PVC Insulated WireNext：UL3610 XL-PVC Insulated Wire
Product Description:
■Tinned,annealed,stranded or solid copper conductor.
■XL-PVC insulation.
■Rated temperature: 80℃. Rated voltage: 300volts.
■Uniform thickness of wire to ensure easy stripping and cutting.
■Passes UL VW-1&CSA FT1 vertical flame test.
Applications:
■For general purpose internal wiring of electronic and electrical equipment.
UL Style & CSA Type Conductor Insulation Thickness Overall Diameter Standard Put-up Conductor Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL3466 CSA （Stranded) 30 7/0.102 0.25 0.8 2000 610 381
28 7/0.127 0.25 0.9 2000 610 239
26 7/0.16 0.25 1 2000 610 150
24 11/0.16 0.25 1.1 2000 610 94.2
22 17/0.16 0.25 1.3 2000 610 59.4
20 21/0.178 0.25 1.5 2000 610 36.7
18 34/0.178 0.25 1.8 2000 610 23.2
16 26/0.25 0.25 2.1 2000 610 14.6
