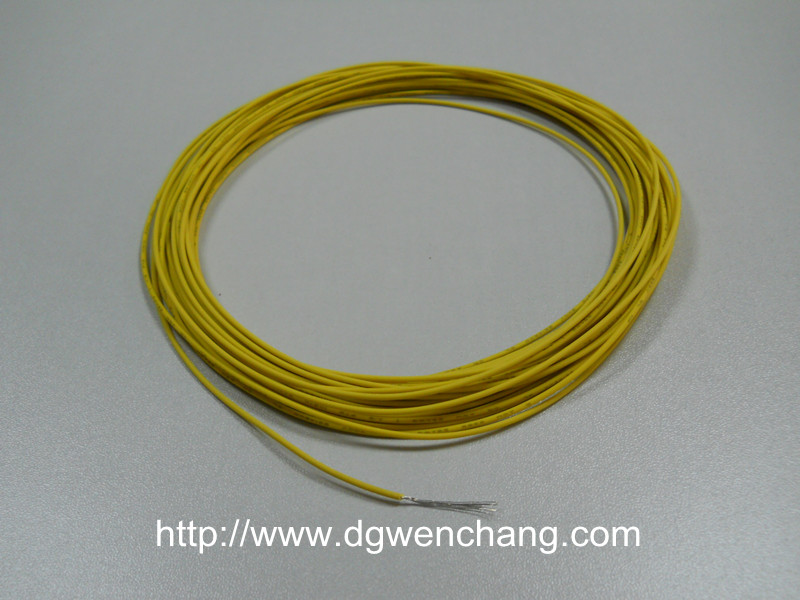

UL3454 XL-PVC Insulated Wire
Prv：UL3453 XL-PVC Insulated WireNext：UL3466 XL-PVC Insulated Wire
Product Description:
■Tinned,annealed,stranded or solid copper conductor.
■XL-PVC insulation.
■Rated temperature: 80℃. Rated voltage: 300volts.
■Uniform thickness of wire to ensure easy stripping and cutting.
■Passes UL VW-1&CSA FT1 vertical flame test.
Applications:
■For general purpose internal wiring of electronic and electrical equipment.

■For general purpose internal wiring of electronic and electrical equipment.

UL Style & CSA Type Conductor Insulation Thickness Overall Diameter Standard Put-up Conductor Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL3454 CSA (Stranded) 24 11/0.16 0.76 2.2 2000 610 94.2
22 17/0.16 0.76 2.4 2000 610 59.4
20 21/0.178 0.76 2.5 2000 610 36.7
18 34/0.178 0.76 2.8 2000 610 23.2
16 26/0.25 0.76 3.1 1000 305 14.6
14 41/0.25 0.76 3.4 1000 305 8.96
12 65/0.25 0.76 4 1000 305 5.64
10 105/0.25 0.76 4.6 1000 305 3.55
