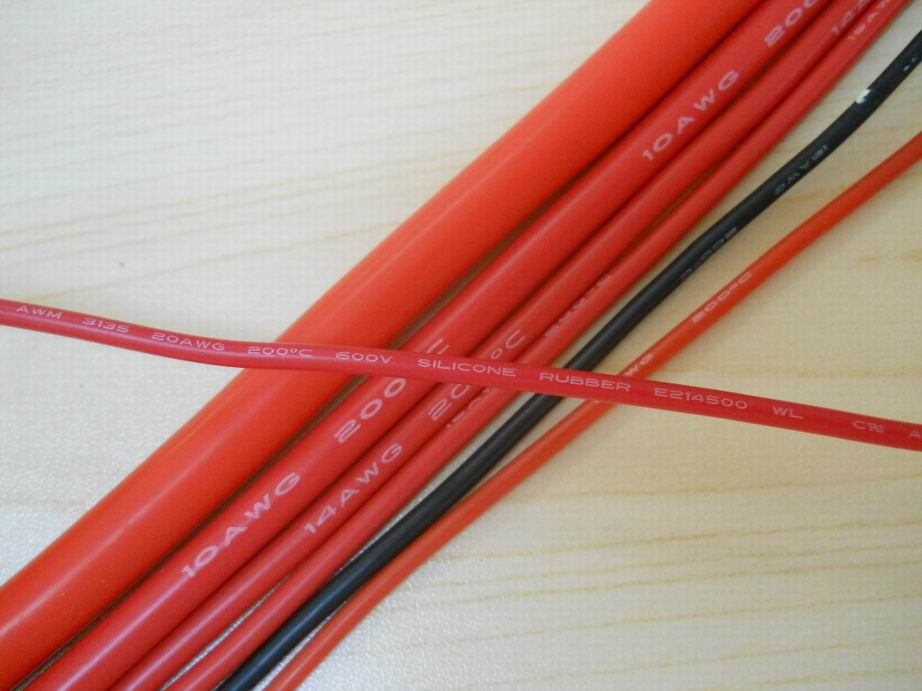

High temperature wire UL3135
Tinned, annealed, stranded or solid copper conductor.
Silicone rubber insulation.
Rated temperature: 200℃. Rated voltage: 600V.
Uniform wire thickness for easy stripping and cutting.
UL VW-1 & CSA FT1 vertical flame test verified.
Top coated conductor is available.
|
UL Style& Cul Type |
Conductor |
Insulation |
Overall |
Standard Put-up |
Conductor |
||
|
AWG |
No/mm |
mm |
mm |
Ft/reel |
M/reel |
Ω/KM |
|
|
UL3135 |
26 |
7/0.16 |
0.76 |
2.04 |
2000 |
610 |
150 |
|
24 |
7/0.20 |
0.76 |
2.17 |
2000 |
610 |
94.2 |
|
|
11/0.16 |
0.76 |
2.17 |
2000 |
610 |
|||
|
22 |
7/0.25 |
0.76 |
2.33 |
2000 |
610 |
59.4 |
|
|
17/0.16 |
0.76 |
2.33 |
2000 |
610 |
|||
|
20 |
7/0.31 |
0.76 |
2.48 |
2000 |
610 |
36.70 |
|
|
21/0.178 |
0.76 |
2.48 |
2000 |
610 |
|||
|
18 |
7/0.39 |
0.76 |
2.75 |
2000 |
610 |
23.20 |
|
|
34/0.178 |
0.76 |
2.75 |
2000 |
610 |
|||
|
16 |
7/0.5 |
0.76 |
3.09 |
1000 |
305 |
14.60 |
|
|
26/0.25 |
0.76 |
3.09 |
1000 |
305 |
|||
|
14 |
37/0.26 |
0.76 |
3.44 |
1000 |
305 |
8.96 |
|
|
41/0.25 |
0.76 |
3.44 |
1000 |
305 |
|||
|
12 |
45/0.32 |
0.76 |
4.00 |
1000 |
305 |
5.64 |
|
|
65/0.25 |
0.76 |
4.00 |
1000 |
305 |
|||
|
UL3135 |
26 |
1/0.40 |
0.76 |
2.04 |
2000 |
610 |
140 |
|
24 |
1/0.51 |
0.76 |
2.17 |
2000 |
610 |
87.5 |
|
|
22 |
1/0.64 |
0.76 |
2.33 |
2000 |
610 |
55.0 |
|
|
20 |
1/0.81 |
0.76 |
2.48 |
2000 |
610 |
34.6 |
|
|
18 |
1/1.02 |
0.76 |
2.75 |
2000 |
610 |
21.8 |
|
|
16 |
1/1.29 |
0.76 |
3.09 |
1000 |
305 |
13.7 |
|
|
14 |
1/1.63 |
0.76 |
3.44 |
1000 |
305 |
8.62 |
|
|
12 |
1/2.05 |
0.76 |
4.00 |
1000 |
305 |
5.43 |
|
Application: For internal wiring of home appliance, illumination, sensor, defense industry, automotive, aviation, electric power.
