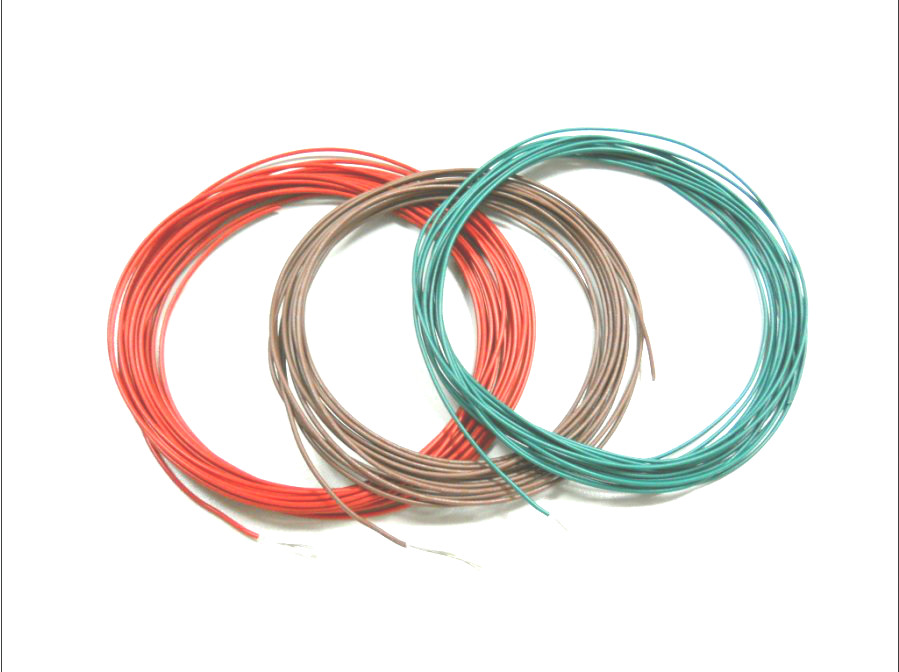

silicone rubber wire UL3239
Prv：UL3239 fluorine wireNext：silicone rubber wire UL3070

Product Description:

1)Conductor: 18AWG - 12AWG

2)Tinned,annealed,stranded or solid copper conductor.

3)Silicone Rubber insulation Braid:Fiberglass+Silicone

4) Rated temperature: 150 °C  .Rated voltage:600volts

5) Uniform thickness of wire to ensure easy stripping and cutting.

6) Passes UL VW-1&CUL FT1 vertical flame test

7) Top coated conductor is available

Applications:

Apply to Household appliance,lumination&Lighting

Metallurgy&Headlamp,electric machines,tempurature

sensor,Military series,Metallurgy Chemical series,

Motor cars&Ships,Electrical installation



UL Style& Cul Type Conductor
Insulation
Thickness
Overall
Diameter
 Standard Put-up
Conductor
Resistance at 20°C
AWG No/mm mm mm Ft/Reel M/Reel Ω/KM
UL3070
CUL AWM I A
(Stranded)
 18 7/0.39 0.76 3.05 1000 305 23.20
34/0.178 0.76 3.05 1000 305
16 7/0.5 0.76 3.39 1000 305 14.60
26/0.25 0.76 3.39 1000 305
14 37/0.26 0.76 3.74 1000 305 8.96
41/0.25 0.76 3.74 1000 305
12 45/0.32 0.76 4.30 1000 305 5.64
65/0.25 0.76 4.30 1000 305
UL3070
CUL AWM I A
(Stranded)
 18 1/1.02 0.76 2.84 2000 610 21.80
16 1/1.29 0.76 3.11 1000 305 13.70
14 1/1.63 0.76 3.45 1000 305 8.62
12 1/2.05 0.76 3.87 1000 305 5.43
