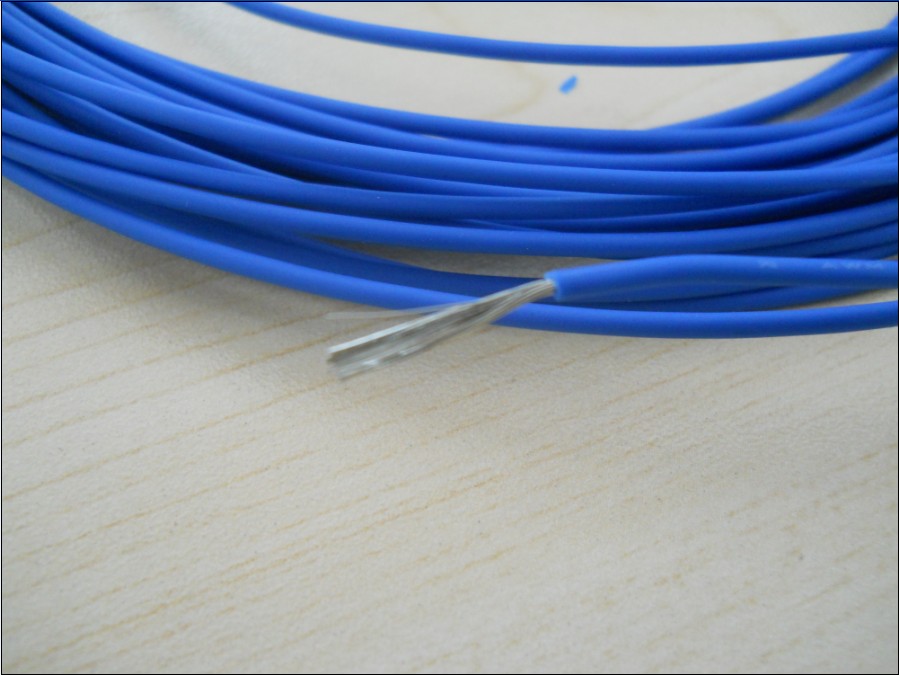

UL3239 fluorine wire
Product Description:
Conductor：30-14AWG
Tinned,annealed,stranded or solid copper conductor.
FEP insulation,FEP Jacket
Rated temperature:200℃.Rated voltage:10K，20K，30K,40K,50K,60Kvolts
Uniform thickness of wire to ensure easy stripping and cutting.
Passes UL VW-1&CUL FT1 vertical flame test
Top coated conductor is available
Applications:
Apply to Household appliance, lumination&Lighting Metallurgy&Headlamp, electric machines, tempurature sensor, Military series, Metallurgy Chemical series, Motor cars&Ships, Electrical installation
| UL Style& Cul Type | Conductor | Insulation | Unit Length(M) |
Conductor Resistance at 20℃ |
||||||||||||
| 10000V | 20000V | 30000V | 40000V | 50000V | 60000V | |||||||||||
| AWG | No/mm | Average
jacket Thickness |
Overall Diameter |
Average
jacket Thickness |
Overall Diameter |
Average
jacket Thickness |
Overall Diameter |
Average
jacket Thickness |
Overall Diameter |
Average
jacket Thickness |
Overall Diameter |
Average
jacket Thickness |
Overall Diameter |
|||
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | M/Coil | Ω/KM | |||
| UL3239 CUL AWM I A/B （Stranded) |
30 | 1/0.25 | >=0.33 | 1.64 | >=0.33 | 2.02 | / | / | / | / | / | / | / | / | 610 | 361 |
| 28 | 1/0.32 | >=0.33 | 1.70 | >=0.33 | 2.08 | / | / | / | / | / | / | / | / | 610 | 227 | |
| 26 | 1/0.40 | >=0.33 | 1.81 | >=0.33 | 2.17 | >=0.33 | 2.55 | / | / | / | / | / | / | 610 | 143 | |
| 7/0.16 | >=0.33 | 1.85 | >=0.33 | 2.22 | >=0.33 | 2.60 | / | / | / | / | / | / | 610 | 150 | ||
| 24 | 1/0.51 | >=0.33 | 1.90 | >=0.33 | 2.28 | >=0.33 | 2.63 | >=0.33 | 2.88 | / | / | / | / | 610 | 89.3 | |
| 7/0.20 | >=0.33 | 2.00 | >=0.33 | 2.38 | >=0.33 | 2.72 | >=0.33 | 2.96 | / | / | / | / | 610 | 94.2 | ||
| 22 | 1/0.64 | >=0.33 | 2.08 | >=0.33 | 2.51 | >=0.33 | 2.95 | >=0.33 | 3.15 | >=0.33 | 3.60 | >=0.33 | 4.40 | 305 | 56.4 | |
| 7/0.25 | >=0.33 | 2.18 | >=0.33 | 2.60 | >=0.33 | 3.05 | >=0.33 | 3.23 | >=0.33 | 3.70 | >=0.33 | 4.50 | 305 | 59.4 | ||
| 20 | 1/0.81 | >=0.33 | 2.26 | >=0.33 | 2.68 | >=0.33 | 3.13 | >=0.33 | 3.30 | >=0.33 | 3.76 | >=0.33 | 4.60 | 305 | 35.2 | |
| 7/0.31 | >=0.33 | 2.40 | >=0.33 | 2.82 | >=0.33 | 3.25 | >=0.33 | 3.45 | >=0.33 | 3.92 | >=0.33 | 4.70 | 305 | 36.7 | ||
| 18 | 1/1.02 | >=0.33 | 2.46 | >=0.33 | 2.88 | >=0.33 | 3.32 | >=0.33 | 3.53 | >=0.33 | 3.97 | >=0.33 | 4.80 | 305 | 22.2 | |
| 7/0.39 | >=0.33 | 2.65 | >=0.33 | 3.06 | >=0.33 | 3.50 | >=0.33 | 3.70 | >=0.33 | 4.15 | >=0.33 | 5.00 | 305 | 23.2 | ||
| 16 | 1/1.29 | >=0.33 | 2.76 | >=0.33 | 3.16 | >=0.33 | 3.60 | >=0.33 | 3.80 | >=0.33 | 4.20 | >=0.33 | 5.00 | 305 | 14.0 | |
| 7/0.50 | >=0.33 | 2.95 | >=0.33 | 3.36 | >=0.33 | 3.60 | >=0.33 | 4.00 | >=0.33 | 4.47 | >=0.33 | 5.30 | 305 | 14.60 | ||
