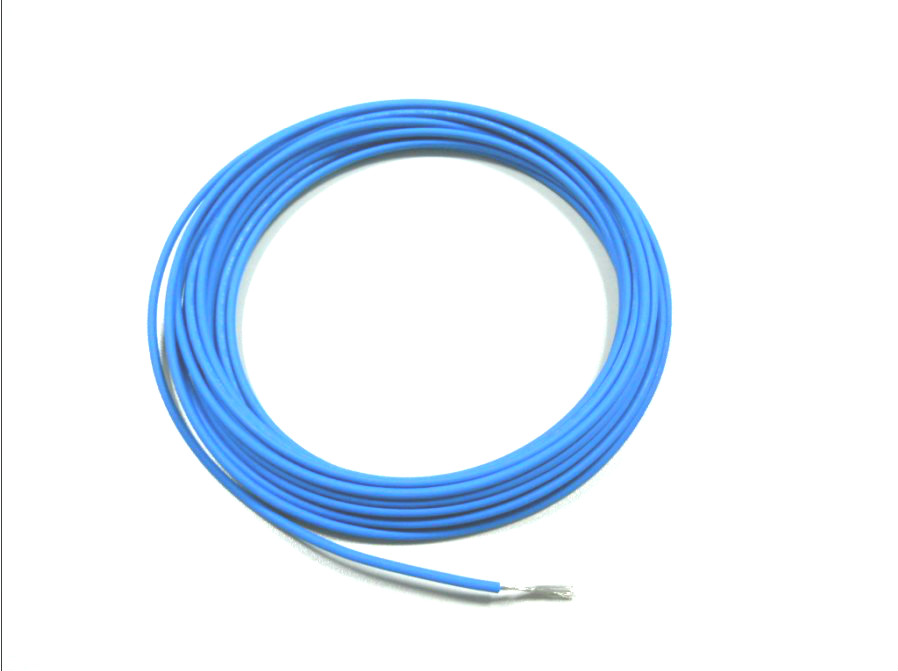

high flexible silicone rubber wire
Product Description:
1)Conductor: 30-6AWG
2)Tinned,annealed,stranded or solid copper conductor.
3) Silicone Rubber insulation
4) Rated temperature:200°C.Rated voltage:300V or 600V
5) Uniform thickness of wire to ensure easy stripping and cutting.
6) Passes UL VW-1&CUL FT1 vertical flame test
7) Top coated conductor is available
Applications:
Apply to Household appliance,lumination&Lighting
Metallurgy&Headlamp,electric machines,tempurature
sensor,Military series,Metallurgy Chemical series,
Motor cars&Ships,Electrical installation
| Conductor | Overall Diameter |
Standard Put-up | Conductor Resistance at 20°C |
||||
| AWG | No/mm | mm | Ft/Reel | M/Reel | Ω/KM | ||
| 30 | 11/0.08 | 0.80 | 2000 | 610 | 381.00 | ||
| 28 | 16/0.08 | 1.20 | 2000 | 610 | 239.00 | ||
| 26 | 30/0.08 | 1.60 | 2000 | 610 | 150.00 | ||
| 24 | 40/0.08 | 1.60 | 2000 | 610 | 94.20 | ||
| 22 | 60/0.08 | 1.70 | 2000 | 610 | 59.40 | ||
| 20 | 100/0.08 | 1.80 | 2000 | 610 | 36.70 | ||
| 18 | 150/0.08 | 2.00 | 2000 | 610 | 23.20 | ||
| 150/0.08 | 2.30 | 2000 | 610 | 23.20 | |||
| 16 | 252/0.08 | 3.00 | 1000 | 305 | 14.60 | ||
| 14 | 400/0.08 | 3.50 | 1000 | 305 | 8.96 | ||
| 13 | 500/0.08 | 4.00 | 1000 | 305 | 7.10 | ||
| 12 | 680/0.08 | 4.50 | 1000 | 305 | 5.64 | ||
| 10 | 1050/0.08 | 5.50 | 1000 | 305 | 3.55 | ||
| 8 | 1650/0.08 | 6.50 | 1000 | 305 | 2.23 | ||
| 7 | 2400/0.08 | 7.20 | 1000 | 305 | 1.77 | ||
| 6 | 3200/0.08 | 8.50 | 1000 | 305 | 1.40 | ||
