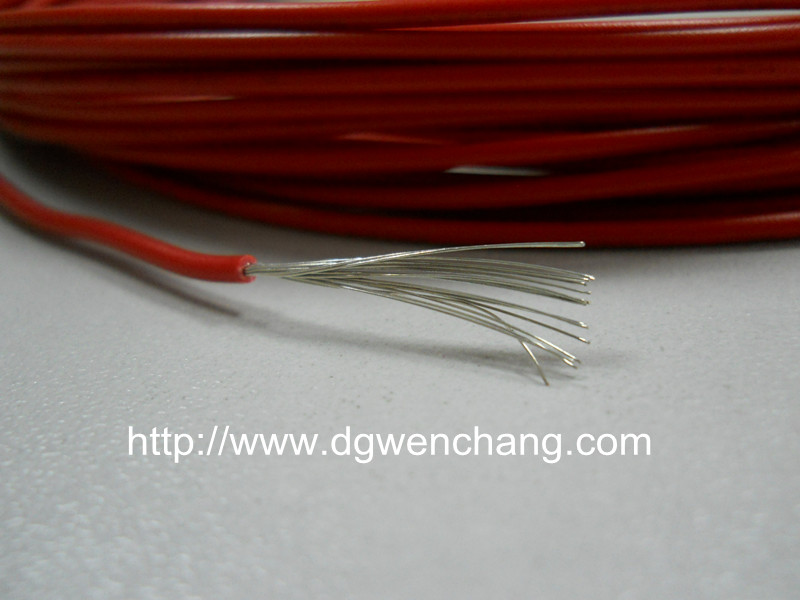

UL10193 XL-PE Insulated Wire
| Product Description: | |||||||
| 1）Tinned,annealed,stranded or solid copper conductor. | |||||||
| 2)XL-PE insulation. | |||||||
| 4）Rated temperature:80℃.Rated voltage:90volts. | |||||||
| 5）Uniform thickness of wire to ensure easy stripping and cutting. | |||||||
| 6）Passes UL VW-1 & CSA FT1 vertical flame test or horizontal flame text. | |||||||
| 7）Executed standard:UL758,UL1581,CSA22.2. | |||||||
| Applications: | |||||||
| 1）For general purpose internal wiring of electronic and electrical equipment. | |||||||
| UL Style & CSA Type | Conductor | Insulation Thickness |
Overall Diameter |
Standard Put-up | Conductor Resistance at 20℃ |
||
| AWG | No/mm | mm | mm | Ft/coil | M/Coil | Ω/KM | |
| UL10193 （Stranded) |
32 | 7/0.080 | 0.41 | 1.00 | 2000 | 610 | 586.00 |
| 30 | 7/0.100 | 0.41 | 1.10 | 2000 | 610 | 381.00 | |
| 28 | 7/0.127 | 0.41 | 1.20 | 2000 | 610 | 239.00 | |
| 26 | 7/0.160 | 0.41 | 1.30 | 2000 | 610 | 150.00 | |
| 24 | 11/0.160 | 0.41 | 1.40 | 2000 | 610 | 94.20 | |
| 22 | 17/0.160 | 0.41 | 1.60 | 2000 | 610 | 59.40 | |
| 20 | 21/0.178 | 0.41 | 1.80 | 2000 | 610 | 36.70 | |
| 18 | 34/0.178 | 0.41 | 2.10 | 2000 | 610 | 23.20 | |
| 16 | 26/0.250 | 0.41 | 2.40 | 2000 | 610 | 14.60 | |
| 14 | 41/0.250 | 0.41 | 2.80 | 1000 | 305 | 8.96 | |
| 12 | 65/0.250 | 0.41 | 3.40 | 1000 | 305 | 5.64 | |
| 10 | 105/0.250 | 0.41 | 4.00 | 1000 | 305 | 3.55 | |
| UL10193 (Top-coated) | 28 | 7/0.127 | 0.41 | 1.20 | 2000 | 610 | 239.00 |
| 26 | 7/0.160 | 0.41 | 1.30 | 2000 | 610 | 150.00 | |
| 24 | 7/0.200 | 0.41 | 1.40 | 2000 | 610 | 94.20 | |
| 22 | 7/0.250 | 0.41 | 1.60 | 2000 | 610 | 59.40 | |
| UL10193 (Solid) | 28 | 1/0.320 | 0.41 | 1.10 | 2000 | 610 | 239.00 |
| 26 | 1/0.404 | 0.41 | 1.20 | 2000 | 610 | 150.00 | |
| 24 | 1/0.511 | 0.41 | 1.30 | 2000 | 610 | 94.20 | |
| 22 | 1/1.634 | 0.41 | 1.40 | 2000 | 610 | 59.40 | |
| 20 | 1/0.813 | 0.41 | 1.60 | 2000 | 610 | 36.70 | |
| 18 | 1/1.024. | 0.41 | 1.80 | 2000 | 610 | 23.20 | |
