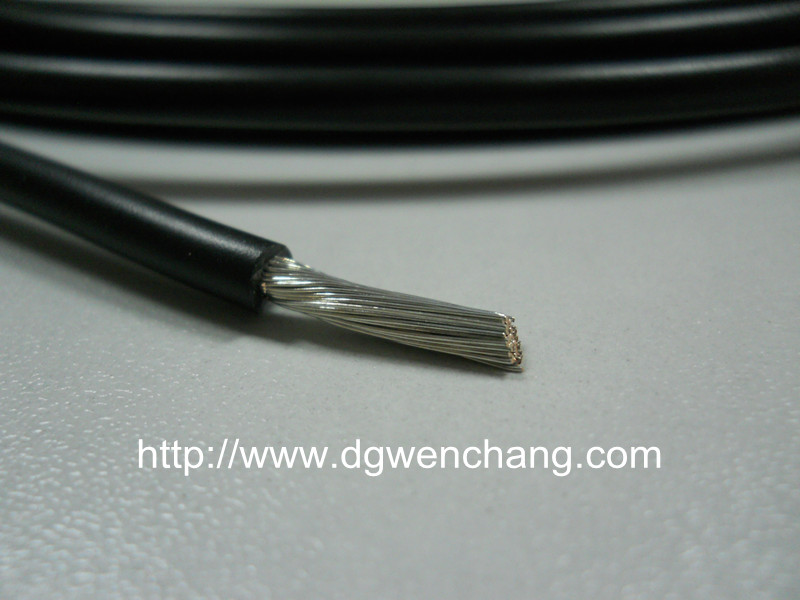

UL10368 XL-PE Insulated Wire
Prv：UL10369 XL-PE Insulated WireNext：UL10193 XL-PE Insulated Wire
Product Description:
1）Tinned ,annealed,stranded or solid copper conductor.
2)XL-PE insulation.
4）Rated temperature:105℃.Rated voltage:300volts.
5）Uniform thickness of wire to ensure easy stripping and cutting.
6）Passes UL VW-1 & CSA FT1 vertical flame test or horizontal flame text.
7）Executive Standard:UL758,UL1581,CSA22.2.
Applications:
1）For general purpose internal wiring of electronic and electrical equipment.
UL Style & CSA Type Conductor Insulation
Thickness		 Overall
Diameter		 Standard Put-up Conductor
Resistance at 20℃
AWG No/mm mm mm Ft/coil M/Coil Ω/KM
UL10368
（Stranded)		 32 7/0.080 0.25 0.70 2000 610 586.00
30 7/0.100 0.25 0.80 2000 610 381.00
28 7/0.127 0.25 0.90 2000 610 239.00
26 7/0.160 0.25 1.00 2000 610 150.00
24 11/0.160 0.25 1.10 2000 610 94.20
22 17/0.160 0.25 1.30 2000 610 59.40
20 21/0.178 0.25 1.50 2000 610 36.70
18 34/0.178 0.25 1.80 2000 610 23.20
16 26/0.250 0.25 2.10 2000 610 16.20
UL10368  (Top-coated) 28 7/0.127 0.25 0.90 2000 610 16.57
26 7/0.160 0.25 1.00 2000 610 14.60
24 7/0.200 0.25 1.10 2000 610 8.96
22 7/0.250 0.25 1.25 2000 610 5.64
UL10368 (Solid) 26 1/0.404 0.25 0.90 2000 610 3.55
24 1/0.511 0.25 1.10 2000 610 27.25
22 1/1.634 0.25 1.20 2000 610 16.50
20 1/0.813 0.25 1.35 2000 610 10.30
18 1/1.024 0.25 1.55 2000 610 4.10
